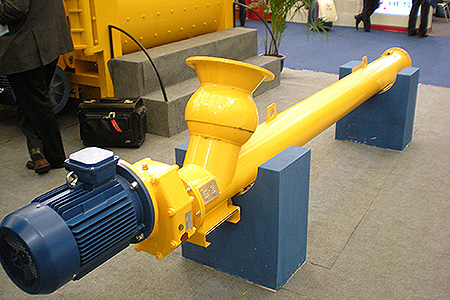

LSY series Screw Conveyor

The LSY series of spiral conveyor is a kind of new equipment that conveying materials with rotating spiral device in a closed housing with round cross-section. It is mainly used to conveying various kinds of powder or granular materials. And it can be used horizontally or tilting, especially suitable


More detailed product information to please download the PDF
  PDF Download>>

Introduction:

The LSY series of spiral conveyor is a kind of new equipment that conveying materials with rotating spiral device in a closed housing with round cross-section. It is mainly used to conveying various kinds of powder or granular materials. And it can be used horizontally or tilting, especially suitable for conveying bulk cement from the cement bin to the mixer or to the batching machine.

Performance:

1. It adopts the one time molding blades of variable pitch, and the spiral pitch is smaller at the lower feeding section than at the conveying section. As the feeding volume is big at the feeding section, and with the spiral pitches getting larger and the feeding amount getting reduced, it can prevent the highly flowable powder material from flowing back during the conveying process and effectively reduce the load of the drive device.
2.  It is connected with hanging bracket made of cast aluminum alloy, regularly filling high quality lubricant. So it is wear resistant and the service life is longer.
3. The unique universal feeding port is more beneficial to the installation and production.
4.  It is assembled with multiple sections, and the standard length of each section is 3 meters, which is standardized and universal and convenient for flexible retrofit.

Specification:

Model LSY160-2.5 LSY160-4.5 LSY200-6 LSY200-8(9) LSY250-8(9) LSY300-9(12.15)
Metric Diameter of Screw 160 160 185 185 237 305
Length of Screw Conveyor 2.5 4.5 6 8(9) 9(12.15) 9(12.15)
Rotary Speed of Main Axle 112 112 100 100 90 80
Sheave Diameter Φ 180 Φ 180 Φ 219 Φ 219 Φ 273 Φ 325
Working Angle ≤20 ≤20 ≤45 ≤45 ≤45 ≤45
Conveying Capacity 25 25 35 35 45 75
Motor Modes Y100L2-4 Y112M-4 Y132S-4 Y132M-4 Y160L-4 Y180L-4
Power of Motor 3 4 5.5 7.5 15 18.5
