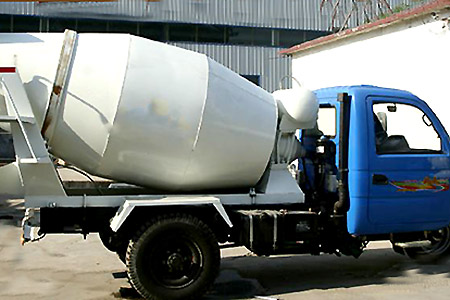

1.6cbm Concrete Mixing Truck

The concrete mixer machine transportation tank mix tube and 4.5 T dump truck chassis with 2 u-bolt and special mat iron can be firmly installed one ,and form the concrete transport tank.the main use is to transport mixtrue concrete to destination on time and quickly.this tank also can be used as mixi


More detailed product information to please download the PDF
  PDF Download>>

Introduction:

The concrete mixer machine transportation tank mix tube and 4.5 T dump truck chassis with 2 u-bolt and special mat iron can be firmly installed one ,and form the concrete transport tank.the main use is to transport mixtrue concrete to destination on time and quickly.this tank also can be used as mixing drum.

Performance:

The machine's trait:don not rely on the power of outside ,optimal barycenter and structure designing,beautiful and natrual the whole looking,working smoothly.the hydraulic elements use high quality products of national key leading enterprise ,mechanical parts structre is reasonable,easy and simple to handle and have reiable operation.the car’s mixing drum can keep turning on the road,avoiding the slurry discrete and sediment.It can insure the quality in the process of mixtrue slurry in transportation.

Specification:

We are professional on producing the various types of concrete mixing truck. We choose the famous truck factories as our partners to provide us with the reliable chassis. Especially our small model mixing truck, it is suitable for some scale projects.

Technical data of 1.6cbm
Name 1.6cbm mixing truck Model of engine LD km160B
Chassis model Wuzheng 1600-1 three wheels series Engine type Forced circulation cooled
Total weight (kg) 2560 Engine displacement (L) 1.38
Dimension L*W*H(mm) 5300*1650*2600 Engine power (kW) 19.8
Wheel base(mm) 3000 Max. standard engine speed(r/min) 2200
Front overhang(mm) 400 Barrel geometric volume (m³) 2
Rear overhang(mm) 2200 Max. mixing volume (m³) 1.6
Max. gradeability(degree) 20 Feed rate (m³) ≥0.5
Max. speed(km/h) ≤50 Discharge rate (m³) ≥0.8
Turning diameter (m) ≤15 Max. rotate speed (r/min) 6-10
clutch double dry type clutch Barrel slope (°) 13.14
Transmission type Belt type Diameter of mixing barrel (mm) Φ1400
Drive mode rear wheel drive Gear box Ky67-3-c
Steering mode Steering wheel Hydraulic pump 50 gear pump
Service brake Single pipeline rear brake Hydraulic motor gerotor motor
Parking brake Mechanical rear brake Water tank volume (L) 62
Tyre 825-16 Water supply way Air pressure
