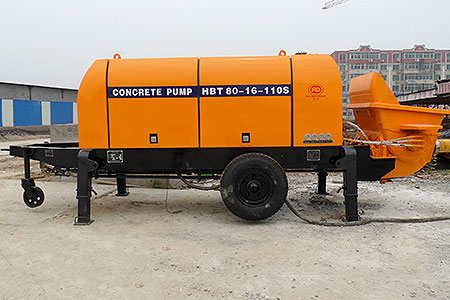

HBT/DHBT series Concrete Pump

On the basis of mature electric commutation technology, we have developed overall hydraulic concrete pumps with excellent performance. This hydraulic system deletes PCL, constant pressure pump, accumulator and approach switch four parts that ate extremely damageable parts in electronic commutation sy


More detailed product information to please download the PDF
  PDF Download>>

Introduction:

On the basis of mature electric commutation technology, we have developed overall hydraulic concrete pumps with excellent performance. This hydraulic system deletes PCL, constant pressure pump, accumulator and approach switch four parts that ate extremely damageable parts in electronic commutation system. It greatly improves the reliability of the machine and makes sure it can work in any hard condition. Our various motor concrete pumps (diesel engine concrete pumps)mainly cover capacity from 30-120 m3/h and pressure from 5-20Mpa.

Performance:

1. Power system
We adopt the world-famous brands-Beide motors of Siemens; We adopt original VOLVO and LOVOL diesel engines as the pumps.
2. Main oil pumps
The main oil pumps apply German HAWE, Rexroth series Japanese Kawasaki series.
3. Electric system
Main electric elements are from Schneider and LG company, the reliability of the electric-control system is highly improved.
4. Lubrication system
Centralized lubrication system adopts progressive distributor which supplies every lubrication
point with oil in turn, and the oiling time can be set. So the oiling is accurate and the oil consumption can be saved.
5. Radiator
The radiator air-cooled type, enabling the machine to work under the allowable highest temperature.
6. Hydraulic rubber hose joints
The hydraulic rubber hose joints are products of American Eaton, insuring the safety and no leakage pf hydraulic system.
7. Seal parts
The seal components in big oil cylinder adopt the products of American Parker.
8. S tube
S tube valves are cast into shape with austenitic manganese steel, the quick wearing surface is welded with wear-resistant material, has the dual advantages of anti-high pressure and anti-wearing
9. Glasses plates and cut loops
Glasses plates and cut loops are made of anti-wearing horniness alloy, they have long service lives.

Specification:

Electromotor concrete pumps:

Item Unit S valve concrete pomp
HBT60S-9 HBT60S-13 HBT60S-16 HBT80S-13 HBT80S-16
Theoretic concrete delivery volume Low pressure M3/h 60 60 60 60 60
High pressure M3/h 36 36 35 47 46
Concrete delivery pressure Low pressure Mpa. 5.7 7.6 9.6 7.6 9.6
High pressure Mpa. 9 12.5 15.7 12.5 15.7
Hydraulic pressure Mpa. 26 32 32 32 32
Electric motor speed r/min 1480
Main oil pump Original German Hawe, Rexroth series Japanese Kawasaki
Main cylinder dia./pole dia.×
stroke		 mm 125/80×1650 125/80×1650 140/900×1650 125/80×1650(1800) 140/900×1650(1800)
Diameter of delivery cylinder mm 200
Epectric motor power kW 75 90 110 110 132
Capacity of hydraulic oil tank L 500
Hopper capacity M3 0.6
Overall weight Kg 6000 6000 6200 6200 6500
Max.delivery distance Vertical m 150 180 250 180 250
Horizontal m 600 700 1000 700 1000

Diesel engine concrete pumps:


Item		 Unit S valve concrete pomp
DHBT60S-9 DHBT60S-13 DHBT60S-16 DHBT80S-13 DHBT80S-16
Theoretic concrete delivery volume Low pressure M3/h 60 60 60 60 60
High pressure M3/h 36 36 35 47 46
Concrete delivery pressure Low pressure Mpa. 5.7 7.6 9.6 7.6 9.6
High pressure Mpa. 9 12.5 15.7 12.5 15.7
Hydraulic pressure Mpa. 26 32 32 32 32
Electric motor speed r/min 1480
Main oil pump Original German Hawe, Rexroth series Japanese Kawasaki
Diesel engine(can be selected) Original VOLVO/DEUTZ imported from Germany
Main cylinder dia./pole dia.×
stroke		 mm 125/80×1650 125/80×1650 140/900×1650 125/80×1650(1800) 140/900×1650(1800)
Diameter of delivery cylinder mm 200
Diesel engine power kW 108 118 145 145 175
Fuel consumption g/kWh 213 218 223 223 228
Capacity of hydraulic oil tank L 500
Hopper capacity M3 0.6
Overall weight Kg 6000 6000 6200 6200 6500
Max.delivery distance Vertical m 150 180 250 180 250
Horizontal m 600 700 1000 700 1000
