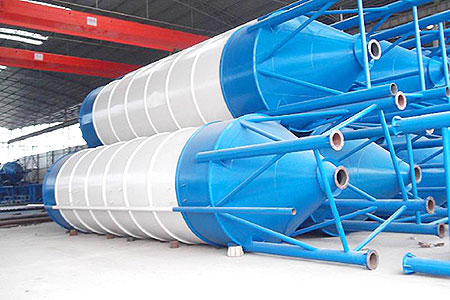

- Cement Silo
-
Cement silo is a kind of closed storage of bulk materials,tank,suitable for storing grain,cemently,fly ash and other bulk materials,tank body is provided with feed system,can display the position of the material and how much,hole device can be released form the material deposition caused b
More detailed product information to please download the PDF
PDF Download>>
Performance:
1. Mainly used as a cement storage tank of Concrete Mixing Plant;
3. It can be equipped with level indicator so as to monitor the material level and amount.
4. With the screw conveyor, the materials can be conveyed to a certain position.
5. Environment friendly design. It is equipped with filter which can reduce the air pollution.
Specification:
Model | Tank Diameter (m) | Tank Height (m) | Tank Overall Height (m) |
50t | 2.8 | 6 | 12 |
80t | 3 | 9 | 15.6 |
100t | 3 | 11.4 | 18 |
200t | Manufactured on site |
