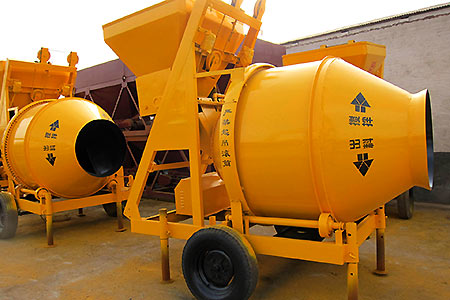

JZ series Concrete Mixer

JZC/JZM series concrete mixer is a self-falling concrete mixing machine which discharging with the double cone barrel rotating reversely. It mixes the material by rotating positively, and discharges by rotating reversely.


More detailed product information to please download the PDF
  PDF Download>>

Introduction:

JZC/JZM series concrete mixer is a self-falling concrete mixing machine which discharging with the double cone barrel rotating reversely. It mixes the material by rotating positively, and discharges by rotating reversely. It is suitable for the common construction, road and bridge, and prefabricated concrete parts factory.

Performance:

1. Good performance;
2. High capacity;
3. Good-quality mixing;
4. Convenient to move;
5. Easy to operate and maintain;
6. Beautiful appearance.

Specification:

Model JZC250 JZC350 JZM350 JZC500 JZM500 JZC750
Discharge volume (L) 250 350 350 500 500 750
Charging volume (L) 320 560 560 800 800 1200
Capacity (m3/h) 6-8 10~14 15~18 18~20 20~25 25~30

Drum rotating
speed (r/min)

 17 14 15 13 13 13
Max. aggregate size
(mm)		 60 60 60 60~80 60~80 60~80
Water feeding
precision		 ≤2% ≤2% ≤2% ≤2% ≤2% ≤2%
Mixing power (kw) 4 5.5 5.5 11 11 15
Lifting power (kw) 4 4.5 4.5 5.5 5.5 7.5
Water pump (kw) 0.55 0.55 0.55 0.75 0.75 1.1
Tyre type 6.50-16 6.50-16 6.50-16 7.50-16 7.50-16
Max. hauling speed
(kw/h)		 20 20 20 20 20
Dimensions (mm) 2260x1990
x2750		 2766x2140
x3000		 3800x2050
x2690		 5226x2200
x5460		 6200x2110
x5300		 6116x2056
x6060
Weight (kg) 1300 1950 1970 3100 3200 4200

Note: Specification is subject to change. Please refer to the machine for actual data.
