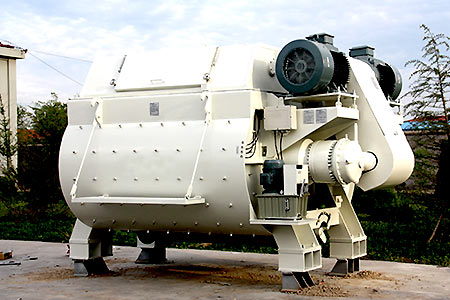

- European Tech.Twin shaft Concrete Mixer
-
HTS series concrete mixer absorbs the European advanced technology and has unique performance of European mixer. It is a good plant to instead the exported same type mixers.
More detailed product information to please download the PDF
PDF Download>>
Performance:
1. The structure of the mixer is designed compactly, and all parts are fixed on the mixing tank, which can save space and be installed and replaced easily;
2. Combined double floating seal and unique seal with high pressure grease, this configuration can expand useful life;
3. The mixing arm is streamline in axial and in radial direction which ensures fast mixing speed and can reach to the homogeneity quickly. Meanwhile, the unique designed structure can improve the utilization rate of cement;
4. Scaled board and paddle are made of manganese steel, which extends the useful life greatly;
5. High pressure cleaning device, consistence probe are optional.
Specification:
Model | HTS1500/1000 | HTS2250/1500 | HTS3000/2000 | HTS4500/3000 | HTS6000/4000 |
Feeding volume (L) | 1500 | 2250 | 3000 | 4500 | 6000 |
Compacted concrete. Per batch (L) | 1000 | 1500 | 2000 | 3000 | 4000 |
Power (kw) | 37 | 2x30 | 2x37 | 2x55 | 2x75 |
Weight(kg) | 5500 | 6500 | 7600 | 9800 | 13000 |
