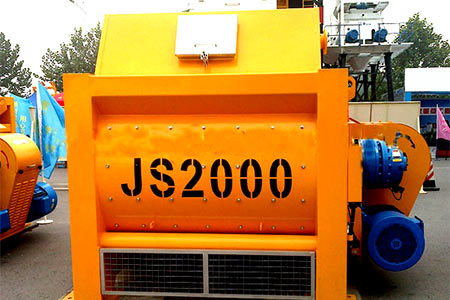

JS series Concrete Mixer

JS series concrete mixer is a kind of double shafts forced type mixer, it can be used separately and can be used together with a concrete batching machine to be a simple type concrete batching plant.


More detailed product information to please download the PDF
  PDF Download>>

Introduction:

JS series concrete mixer is a kind of double shafts forced type mixer, it can be used separately and can be used together with a concrete batching machine to be a simple type concrete batching plant. It is being widely used in various scale of prefabricate concrete parts factory, and much construction of road and bridge, dam, port and so on. It could be used to produce dry concrete, plastic concrete, fluidity concrete, lightweight aggregate and various kinds of mortar.

Performance:

1. Special drum prolongs the service life of the steel wire rope.
2. Precise mechanical parts.
3. High-quality wear-resistant alloy casting parts and advanced production technology ensure the clearance of the mixing blades and the liner plate well-distributed.
4. The test run with dry aggregate supplies sufficient reasons for customers to choose Hamac.
5. Concrete intensity test proves the excellent performance of the mixing equipment.

Specification:

Model JS500 JS750 JS1000 JS1500 JS2000 JS3000
Discharging volume (L) 500L 750L 1000L 1500L 2000L 3000L
Feeding volume (L) 800L 1200L 1600L 2400L 3200L 4800L
Capacity ≥25m³/h ≥37.5m³/h ≥50m³/h ≥75m³/h ≥100m³/h ≥150m³/h
Maximum aggregate size (pebble/gravel)mm 40/50 40/60 60/80 80/100 80/100 80/120
Cycle time (S) 72 72 60 60 60 60
Total weight (kgs) 4000 5500 8700 11300 15000 9200
Discharge height (m) 3.8 3.8 3.8 3.8 3.8 3.8
Mixing blade Rotary speed 35r/min 26r/min 29.6r/min 24.5r/min 24.5r/min 21r/min
Quantity 2×7 2×7 2×8 2×8 2×8 2x10
Mixing motor Model Y180M-4 Y200L-4 Y180M-4 Y225M-6 Y250M-6 Y280M-6
Power 18.5kw 30kw 2x18.5kw 2x30kw 2X37kw 2X55kw
Hoist motor Model YEZ1325-4-B5 YEZ132M-4-B5 YEZ160L-4 YEZ180L-4 YEJ180L-4
Power 5.5KW 7.5KW 15KW 18.5KW 22KW
Pump motor Power 1.1KW 1.1KW 3KW 3KW 4KW

Note: Specification is subject to change. Please refer to the machine for actual data.
