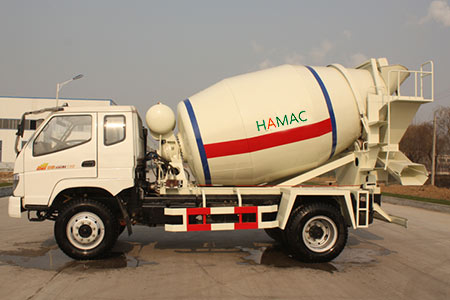

2cbm Concrete Mixing Truck

2cbm Concrete Mixing Truck is equipped with all-steel radial tyre as standard, which features high loading capacity, low rolling resistance, nice wear resistance, and good puncture-proof performance. The concrete mixer machine transportation tank mix tube and 4.5 T dump truck chassis with 2 u-bolt an


More detailed product information to please download the PDF
  PDF Download>>

Introduction:

2cbm Concrete Mixing Truck is equipped with all-steel radial tyre as standard, which features high loading capacity, low rolling resistance, nice wear resistance, and good puncture-proof performance. The concrete mixer machine transportation tank mix tube and 4.5 T dump truck chassis with 2 u-bolt and special mat iron can be firmly installed one ,and form the concrete transport tank.the main use is to transport mixtrue concrete to destination on time and quickly.this tank also can be used as mixing drum.

Performance:

2cbm Concrete Mixing Truck is strong well designed equipment meant for transporting concrete / mortar from concrete batching plant directly to the place where it is to be poured, effectively delay concrete coagulations, avoid concrete stratification and eduction, and ensures construction quality and speed.

2cbm Concrete Mixing Truck  has a wide range of application especially for mass concreting works like Construction of Canals, Bridges, Highways, Dams, Multistoried & Industrial Buildings, Factories, and Airports for ready mixed Concrete Works.

1.  Principal components of the concrete mixer truck
(1) Hydraulic System: hydraulic pump, hydraulic motor.
(2) Drivetrain System: reductor.
(3) Control System.
(4) Mixing System.
(5) cleaning system.

2. Advantages of concrete mixer truck
(1) High-intensity drum material.
(2) featuring better wear-resistance and long service life.
(3) Germany IFM sensors
(4) low material residue.
(5) High-quality parts.
(6) Excellent performance and convenient operation.
(7) Imported original hydraulic system(Bosch Rexroth Brand).
(8) PMP or CF reducer

Specification:

We are professional on producing the various types of concrete mixing truck. We choose the famous truck factories as our partners to provide us with the reliable chassis. Especially our small model mixing truck, it is suitable for some scale projects.

Technical data of 2cbm
Name 2cbm mixing truck Model of engine LD km138h
Chassis model WI 1710 series Engine type Forced circulation cooled
Total weight (kg) 2580 Engine displacement (L) 1.38
Dimension L*W*H(mm) 5300*1650*2600 Engine power (kW) 18.38
Wheel base(mm) 2450 Max. standard engine speed(r/min) 2200
Front overhang(mm) 1100 Barrel geometric volume (m³) 2.3
Rear overhang(mm) 1800 Max. mixing volume (m³) 2
Max. gradeability(degree) 25 Feed rate (m³) ≥0.5
Max. speed(km/h) ≤50 Discharge rate (m³) ≥0.8
Turning diameter (m) ≤15 Max. rotate speed (r/min) 6-10
clutch double dry type clutch Barrel slope (°) 13.14
Transmission type Belt type Diameter of mixing barrel (mm) Φ1400
Drive mode rear wheel drive Gear box Ky67-3-c
Steering mode Steering wheel Hydraulic pump 50 gear pump
Service brake Single pipeline rear brake Hydraulic motor gerotor motor
Parking brake Mechanical rear brake Water tank volume (L) 62
Tyre 650-16 Water supply way Air pressure
