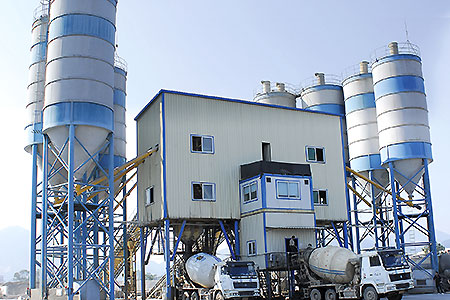

- Modular Concrete Batching Plant
-
The modular design without foundation and commissioning enables convenient and quick installation. It only takes three days from installation to use. All necessary facilities such as: control room, laboratory and maintenance room are equipped. Cost effective. An ideal choice for engineering.
More detailed product information to please download the PDF
PDF Download>>
Performance:
1. Adopt twin-shaft compulsory concrete mixer as the assorted mixer, which has obvious characteristics like fast mixing, wide mixing range and good quality concrete, etc to satisfy the customers' requirement.
2. Adopt the technology of “click to supplement”, to ensure the accuracy of dynamic measurement no more than ±1%.
3. Adopt additive weighing scale pneumatic conveying equipment, applied for national patent, to measure and convey additives, which completely avoid the quality accident caused by the failure of additive system.
4. Assemble two suits operating devices(touch-screen and computer), and can be operated manually, semi-automatically and automatically, which ensures the working reliability.
5. The fully accounted concrete technology enable perfect functions like: unique ratio deposit, self compensation of aggregates drop, scale-owing, alarming and revising of over-scale, on-line modifying formula, data saving and query, and report-print and so on.
6. Use pre-debugged air plugs to ensure quick installation and commissioning.
Specification:
Item | Type | |||
YHZS60 | YHZS90 | YHZS120 | YHZS180 | |
Theoretical Productivity(m³/h) | 60 | 90 | 120 | 180 |
Mixer | JS1500/1000 | JS2250/1500 | JS3000/2000 | JS4500/3000 |
Batching System | PLD1600 | PLD2400 | PLD3200 | PLD4800 |
Discharging Height(mm) | 4000 | 4000 | 4200 | 4200 |
The Max. Diameter of the Aggregates(mm) | 60(80) | 60(80) | 60(80) | 60(80) |
Transportation Dimension(L×W×H)mm | 17500X2300X4300 | / | / | / |
